System role
Horizontal bay connector
Product overview

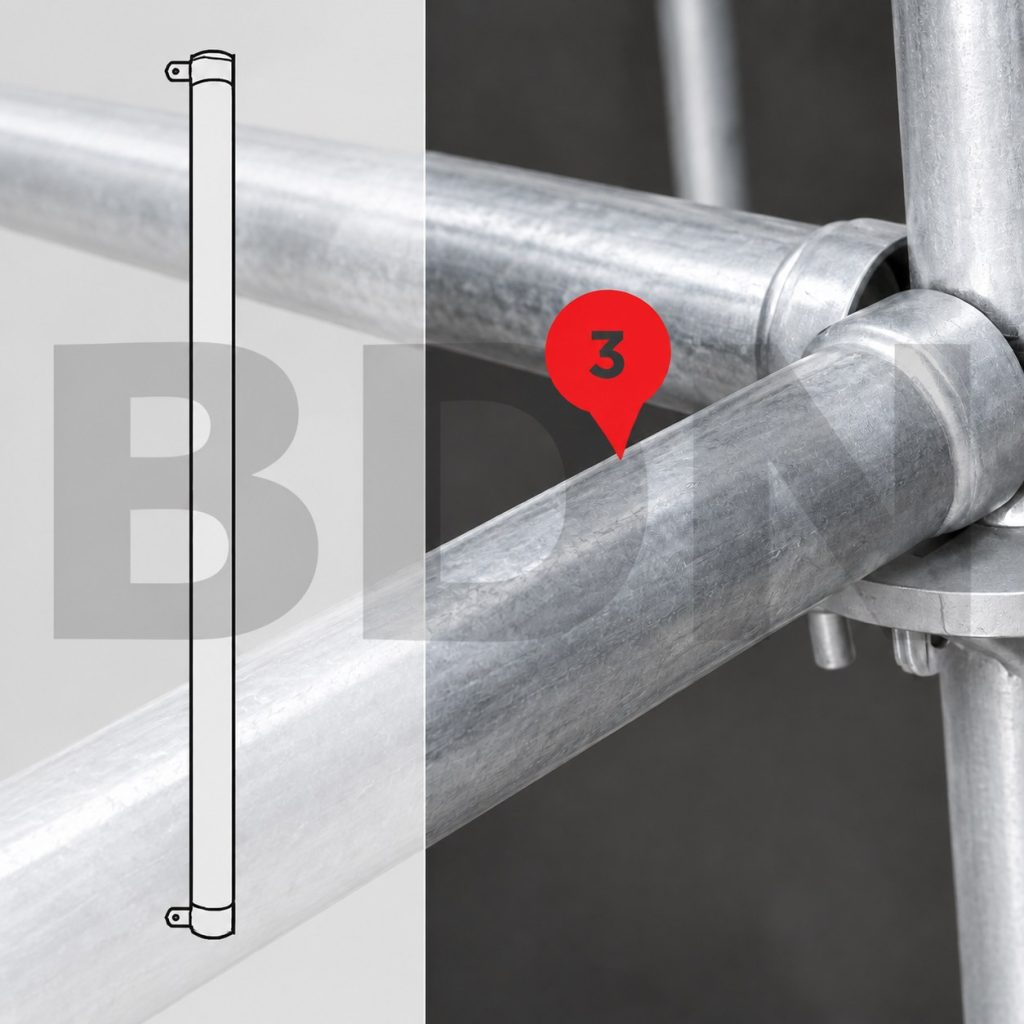

Horizontal connects compatible Ring Base Verticals and defines the bay between them. The same scaffold may use many Horizontals across repeated levels, which makes a bay schedule or layout the best basis for quantity. Length and level spacing should be confirmed from the intended configuration before supply.
Applications
- Connecting Ring Base Verticals
- Defining scaffold-bay geometry
- Building repeated modular levels
Key features
- Core connection member
- Used across repeated bay levels
- Works directly with Vertical connection points
Technical specifications
Technical details confirmed on inquiry
Technical dimensions are confirmed against the required system configuration during inquiry.
Selection guidance
Confirm the bay dimension, number of connection levels, and compatible Vertical arrangement. Use a drawing when more than one bay size is involved.
